Rinnai TX Series Inverter Split System Air Conditioner

Name: Rinnai TX Series Inverter Split System Air Conditioner
Brand: Rinnai
Price: 839.0 AUD
Availability: InStock

by Rinnai

$839.00 - $839.00

$839.00

$839.00 - $839.00

$839.00

TX Series Split System

2.6kW - $839

3.5kW - $1079

5.0kW - $1519

6.0kW - $1649

7.0kW - $1799

8.0kW - $2259

Smart, powerful air conditioning for Australian homes

Rinnai - 7 year residential warranty

The Rinnai TX Series 3.5kW Inverter Split System Air Conditioner delivers powerful, energy-efficient heating and cooling for Australian homes. Ideal for medium-sized living areas, larger bedrooms, and home offices, this split system provides heating and cooling for year-round comfort in Australia’s ever-changing climate. Advanced inverter technology ensures consistent temperatures while helping to reduce energy usage and running costs.

This smart air conditioner comes with built-in Wi-Fi and voice control, allowing you to manage settings remotely via the NetHome Plus App⁺ or compatible Google Assistant and Amazon Alexa devices. Its high-performance HEPA filtration system improves indoor air quality by reducing bacteria and capturing fine dust particles, promoting a healthier home environment.

Designed for durability, the outdoor unit features Rinnai’s GoldGuard™ coating, providing superior corrosion resistance for reliable performance, even in coastal and harsh environments.

Ideal for mid-sized living areas, larger bedrooms, home offices (16-23m²)

Up to 5.0 star energy efficiency rating in cooling mode^

Quiet operation

Turbo function

HEPA air filtration

Wi-Fi and Voice control compatible with Google Home/Amazon Alexa

7 year residential warranty*

Energy Efficient Design

Up to 5.0 star energy efficiency rating – in cooling mode (^hot climates)
R32 refrigerant** – Eco-friendly refrigerant with lower global warming potential
Demand control – demand response capability (DRED) to help reduce overall power consumption at critical peak load times (Subject to availability from your energy provider)
Inverter technology – maintains consistent temperature and reduce running costs

Superior Technology

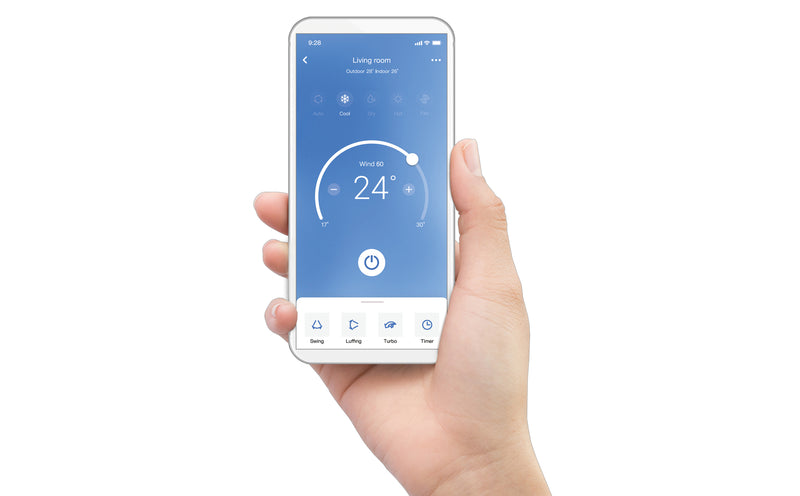

Smart Wi-Fi and Voice control – allows for convenient control from anywhere with the NetHome Plus App⁺ (App available from the Apple Store or Google Play, and is compatible with Google Home and Amazon Alexa)
Delay timer – turns appliance on/off within a specific time period
HEPA air filtration – Removes up to 99% of dust and reduces bacteria for healthier indoor air
Dehumidifying mode – Helps manage humidity during hot and humid Australian summers
Turbo mode – Quickly cool in summer or swiftly warm in winter
3D airflow – Adjustable air flow direction allowing for balanced room temperature and comfort
Quiet operation – Low-noise design ideal for bedrooms and living areas

Download NetHome Plus App

Rinnai Quality

Superior GoldGuard™ Corrosion Protection*** – coil coating for long-lasting performance in coastal and harsh Australian conditions
7 year residential warranty*

Dimensions:

H: 295, W: 802, D: 200

Rinnai – TX Series 3.5kW Reverse Cycle Split System		Values	HSNRTX35
Nominal Capacity		kW	3.5
Suitable Area	Up to 2.6m Insulated Ceiling	m²	16 – 23
Power Supply	To Outdoor Unit	V – Ph – Hz	220~240 – 1 – 50
Maximum Input	Power (Cooling / Heating)	W	2300
Maximum Input	Current (Cooling / Heating)	A	10
Connectivity			Wi-Fi Enabled
Demand Response Enabling Device			DRED Enabled
Cooling	Rated Capacity	kW	3.5
	Capacity Range	kW	1.05 – 3.90
	Rated Input Power	W	850
	Rated Current	A	3.80
	Annualised Energy Efficiency Ratio [AEER]¹	W / W	4.10
	Temperature Compensated Seasonal Performance Factor [TCSPF]² (Hot / Average / Cold)		6.53 / 6.19 / 6.51
	Star Rating (Hot / Average / Cold)		5.0 / 4.5 / 5.0
Heating	Rated Capacity	kW	4.0
	Capacity Range	kW	1.20 – 4.10
	Rated Input Power	W	930
	Rated Current	A	4.10
	Annual Coefficient of Performance [ACOP]³	W / W	4.29
	Heating Seasonal Performance Factor [HSPF]⁴ (Hot / Average / Cold)		5.38 / 4.69 / 4.20
	Star Rating (Hot / Average / Cold)		3.5 / 3.0 / 2.5

¹ AEER: The Annualised Energy Efficiency Ratio (AEER) measures a cooling system’s efficiency by comparing its total cooling output to the electricity it consumes, including standby power.
² TCSPF: Temperature Compensated Seasonal Performance Factor (TCSPF) measures a heat pump’s seasonal heating efficiency, adjusted for varying outdoor temperatures.
³ ACOP: The Annual Coefficient of Performance (ACOP) measures a heater’s efficiency by comparing its total heating output to the electricity it consumes, including standby power.
⁴ HSPF: Heating Seasonal Performance Factor (HSPF), is a key efficiency metric for heat pump air conditioners, indicating how effectively the unit heats your home during the colder months.

Indoor Unit			HINRTX35
Dimensions (Height x Width x Depth)	Unit	mm	295 x 802 × 200
	Packing		375 x 875 × 288
Net / Gross Weight		kg	8.6 / 11.1
Airflow*	Turbo / Hi / Med / Lo / Min	L / s	183 / 147 / 106 / 86 / 56
Moisture Removal		L / h	1.7
Sound Power Level		dB(A)	59
Sound Pressure @ 1.0m**	Turbo / Hi / Med / Lo / Min		45.0 / 39.5 / 33.0 / 26.0 / 19.5
Air Swing Louvres		Direction	Vertical and Horizontial
Operating Range	Cooling	°C	16 – 32
	Heating		0 – 30

* Values tested in fan mode.
**The declared sound pressure level represents the maximum value measured in either cooling or heating mode. It is provided as a general specification and is not specific to one mode of operation.

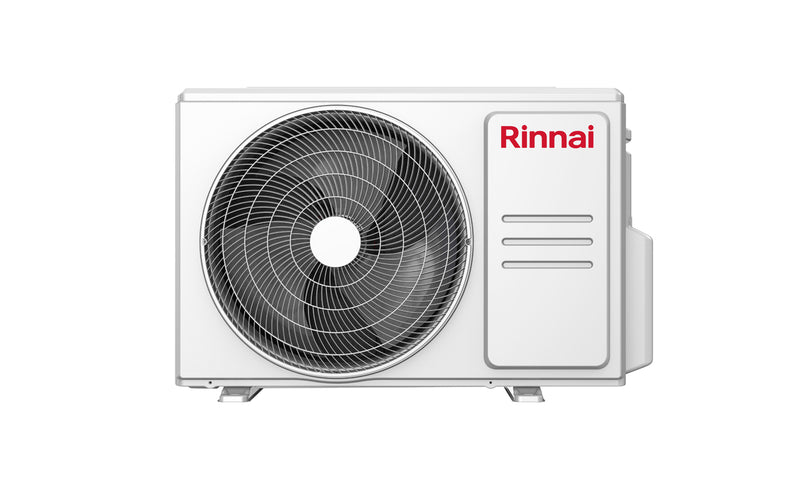

Outdoor Unit			HONRTX35
Dimensions (Height x Width x Depth)	Unit	mm	555 x 765 × 303
Dimensions (Height x Width x Depth)	Packing	mm	610 x 887 x 337
Net / Gross Weight		kg	25.8 / 28.0
Sound Power Level		dB(A)	62.9
Sound Pressure Level @ 1m		dB(A)	56
Refrigerant	Type		R32
	Charged Volume	kg	0.85
	Pipe Size (Liquid / Gas)	mm	6.35 / 9.52
	Maximum Pipe Length	m	25
	Chargeless Length	m	15
	Extra Charge for Lengths >15m	g / m	12
	Maximum Vertical Separation	m	10
Ambient Temperature Limits (min. / max. outdoor air temperatures)	Cooling	°C	-15 ~ 50
	Heating	°C	-15 ~ 24

Capacities tested in accordance with AS/NZS 3823.2, with 5m interconnecting pipe length. Dimensions are subject to production tolerances and may vary slightly from those given.
